PBXport provides connections for a microphone, headphones, mixer, telephone handset and your telephone set. Simply disconnect the handset coily cord from the base of your telephone, and connect this handset cord to the front or rear panel jacks on PBXport. Now connect the supplied cord from PBXport to your telephone base. The handset is disconnected when you press the “Online” button, and reconnected when you press the “Handset” button. We now use this with new digital PBX systems .

We still carry the Gentner telephone interface if needed.

The Handset Type switch allows PBXport to emulate the type of microphone found in any PBX phone system; electret, dynamic, or carbon handset microphones.

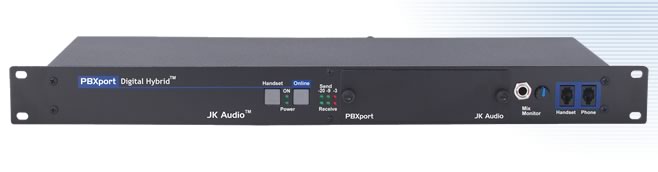

PBXport is a professional digital hybrid capable of providing talk show quality caller audio from your PBX phone system. PBXport allows you to send mic or line level signals into your PBX telephone system while maintaining excellent separation between your voice and the caller. The balanced XLR output jack contains only the caller’s voice allowing full duplex voice conferencing through the existing PBX phone system without fear of echo and feedback.

Conference Room: Easily connect your PA system to the existing PBX telephone system. The echo canceller algorithm can prevent feedback and allow full duplex conversations.

Talk Show: Connect PBXport between your console and your existing multi-line telephone. Your producer can screen callers from another phone while you take callers on the air by simply selecting available lines on your phone.

The digital hybrid connects audio signals to your PBX type telephone system through the telephone handset cord. The Digital Signal Processor (DSP) continuously monitors both transmit and receive audio signals to deliver excellent separation. This proprietary, dual-convergence echo canceller algorithm can achieve excellent separation without any setup, and without sending a noise burst down the line.

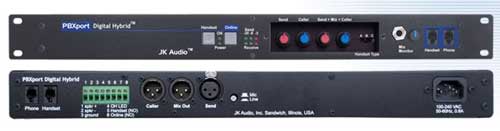

PBXport provides connections for a microphone, headphones, mixer, telephone handset and your telephone set. Simply disconnect the handset coily cord from the base of your telephone, and connect this handset cord to the front or rear panel jacks on PBXport. Now connect the supplied cord from PBXport to your telephone base. The handset is disconnected when you press the “Online” button, and reconnected when you press the “Handset” button.

The Handset Type switch allows PBXport to emulate the type of microphone found in any PBX phone system; electret, dynamic, or carbon handset microphones.


Features

16 bit DSP Echo Canceller
Proprietary auto null algorithm, 50 dB null
Transmit female XLR with mic/line switch
Caller output male XLR
Mix output male XLR (adjustable mix of send & receive)
Front panel ¼” headphone jack
Speaker output terminals
Transmit and Receive LEDs
Switch selects between electret, dynamic, and carbon handset types
Front and Rear panel Handset and Phone Base RJ22 jacks
Remote control screw terminal block
Specifications

Input
Mic/Line:

Balanced Female XLR, 1kohm,
-10 mV RMS nom. (-38 dBu nom.)
Mic/Line pad switch
Line = +5dBu nom.


Output
Caller, Mix:
XLR, 200ohms balanced, 500 mV RMS nom. (+14 dBu max)

Headphone:
¼” stereo, 8 ohms, 250 mW

Speaker:
Screw terminal, 8 ohm, 1W max.

Handset:
RJ22

Phone Base:
RJ22

Handset Type:
Switch selects electret, dynamic, or carbon handset microphone types.

Isolation:
1500 VAC

Frequency Response:
Telephone Side 200 Hz - 3600 Hz

Screw Terminals:
Speaker +
Speaker –
Ground
Online LED
Disconnect (N.O. remote control input)
Connect (N.O. remote control input)

Power:
100-240 VAC 50-60 HZ

Size:
1.75” x 7.3” x 19” (4.5 x 18.6 x 48.3 cm)

Weight:
5.4 pounds (2.4 kg)
