Dell UltraSharp 2407WFP 24" LCD
Monitor, 1920x1200, 6ms, DVI
With AJA HDP Converter
HD SDI and SDI (What
HDSDI and SDI Does) |
|
To optimize this monitor's
performance, your system must be able to support WUXGA
resolution (1920x1200).
The UltraSharp 2407WFP is Dell's next-generation 24"
wide-aspect LCD monitor. As the world's Number 1 supplier of
flat-panel displays, Dell continues its commitment to
provide latest LCD technology at industry-leading prices.
Performance: Fast response times can reduce ghosting and
smearing during video playback, while high contrast ratios
provide rich, powerful colors. Wide viewing angles allow for
clear views from any location.
Widescreen: With resolutions of up to 1920x1200 pixels, the
2407WFP is ideal for the multi-tasker or gamer. Watch movies
in original 16:10 format. Run multiple applications on a
single monitor.
Features: 4 USB 2.0 ports give users easy access points to
plug in external devices. An integrated 9-in-2 multimedia
card reader allows easy access to photos or files. With
3.94" (100 mm) of vertical adjustment and 24° of tilt, it
helps to reduce eye/neck strain. This Flat Panel LCD Monitor
comes with a 3-Year Warranty.
Specifications
Diagonal Size: 24"
Display Type: Flat Panel Display / Active Matrix TFT -
Desktop
Depth: 7.68"
Features: 100 mm VESA Mounting, Height Adjustable Stand
Included, Detachable Panel mechanism
Height: Compressed: 15.27", Extended: 23.02"
Weight: 18.3 lbs
Width: 22.04"
Image Max H-View Angle: ±89°
Image Max V-View Angle: ±89°
Color Support: 16.7 Million
Connectivity Technology: Cable
Device Type: Flat Panel LCD Monitor with Height Adjustable
Stand
Dimensions (WxDxH): 22.04" x 7.68" x 15.27" to 23.02"
Dimensions (WxDxH) / Weight: 22.04" x 7.68" x 15.27" to
23.02" / 18.3 lbs
Enclosure Color: Black
Image Aspect Ratio: 16:10
Image Brightness: 500 cd/m² (typical)
Image Contrast Ratio: 1000:1 (typical)
Max Resolution: 1920x1200 (WUXGA)
Max Sync Rate (V x H): 76 Hz x 81 kHz
Power Consumption Operational: 110 W (maximum)
Diagonal Size / Viewable Size: 24" / 24"
Port(s) Total (Free) / Connector Type: 15-pin D-sub / DVI-D
(HDCP) / S-video / Composite / Component / 4 x USB 2.0
Compatibility: PC/MAC
Product Highlights:
Maximum resolution of 1920x1200 pixels
HDCP compliant monitor
Faroudja DCDi Processing helps to eliminate jagged edges and
provide image enhancements
Integrated Adaptive Color and Contrast technology helps to
enhance contrast in luminance range
Features Active Color Management (ACM) designed to support
most viewing modes with optimum color saturation
Widescreen aspect (16:10) panel improves viewing experience
Supports more advanced features such as PIP (Picture in
Picture) and PBP (Picture By Picture)
4 USB 2.0 ports
9-in-2 Flash card reader
|
|
AJA’s HDP
HD-SDI/SDI to DVI-D and Audio
Converter. |
FEATURES
|
HDP
HD-SDI/SDI to DVI-D and
Audio Converter
The HDP is a miniature HD-SDI/SDI to DVI-D
converter for LCD or Plasma monitors. Using a
very high quality scaling engine, the HDP will
automatically size 4:3 or 16:9 inputs to many
DVI-D monitors (see Technical Note below). For
appropriate monitor configurations, scaling is
automatically 1 to 1 — for example, displaying
1920x1080 video on a WUXGA (1920x1200)
monitor. The HDP will also automatically adapt
the input frame rate for monitor
compatibility. In addition, the HDP provides 2
channel RCA style audio monitoring and 2
looping outputs of the SDI inputs. HDP is the
ideal solution for displaying SDI or HD-SDI on
any LCD or Plasma DVI-D monitor. |
Converts
HD-SDI/SDI to DVI-D for LCD/Plasma monitors
Automatically adapts to any LCD monitor up to
1920x1200

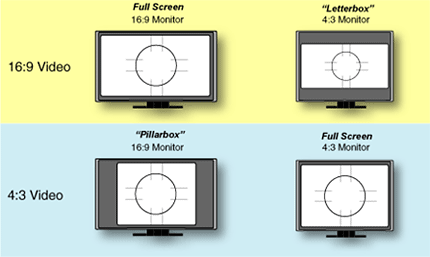

High quality scaling engine for proper display
of 4:3 or 16:9 content
Scaling is 1 to 1 for appropriate monitor
configurations
2 channel audio output
2 HD-SDI/SDI looping outputs
Flexible 5-18V power supply |
|
Technical Note
The HDP is designed to work with most DVI-D
monitors. The HDP uses the industry standard
EDID communication protocol (within the DVI
link) to communicate with the monitor, and
then adjusts the HDP's internal scaling engine
to scale the input video to the native
resolution of the monitor. However, due to the
hundreds of variations of DVI formats
currently in use, proper operation with all
monitors cannot be guaranteed. The HDP has 2
modes of operation that occur automatically,
depending on what monitor it is attached to.
These modes are Recommended Monitor Mode or
VESA Mode.
Recommended
Monitor Mode
For recommended monitors, there is custom
firmware that will provide an accurate
frame-locked image for all supported SDI and
HD-SDI input formats. The HDP automatically
determines the monitor it is connected to.
Recommended
Monitors:
- Apple 23" HD
Cinema, model M9178LL/A (aluminum bezel)
- Sony 23",
model SDM-P234
- Viewsonic
VP231WB (60Hz Vlock native, 50/60Hz Vlock @
720p)
- Dell 2405FPW
(50/60Hz Vlock native, 50/60Hz Vlock 720p)
- Barco LC-42
(supported on HDP serial numbers H05019 or
higher)
- Barco LC-47
(supported on HDP serial numbers H05019 or
higher)
VESA Mode
For DVI-D monitors not on the recommended
list, the HDP will use standard VESA timing
based on the particular monitor's "preferred
timing" - as determined by the EDID
communication with the monitor. Because VESA
timing standards are not based on video
formats, the HDP cannot frame lock to the
input video and will operate like a frame
synchronizer — it will frame rate convert by
adding or dropping frames as needed. If a
particular monitor reports a preferred timing
mode that is not supported by the HDP, the HDP
will default to standard XGA (1024 x 768 60Hz)
timing.
Monitors Tested
for Compatibility in VESA Mode:
- HP HPL2335
Samsung 170T
- Samsung 213T
Samsung 243T
- Samsung 173P
The HDP is designed for use as a general
monitoring device, perfect for use in
applications such as:
- General
post-production reference monitoring
- Client
monitoring
- Presentation
- Projection
- Corporate
displays
- Kiosk
applications
- ...And much,
much more!
The scaling
engine in the HDP makes it a simple and
effective way to get full-screen images from a
myriad of SD and HD sources. The HDP is not
intended as a critical viewing device, for
applications such as color-correction, etc. We
recommend professional/broadcast grade
monitors for such critical applications.
Specifications
Inputs
|
SMPTE-259/292/296 SDI/HD-SDI |
Input Formats
|
1080i, 1080p,
720p, 525i, 625i |
Outputs
DVI-D (E-DDC
and E-EDID compatible)
Audio (2 channel RCA-style outputs) @
-10dBV nominal
2 Looping SDI outputs of the SDI inputs |
Supported
Output Displays (native resolution)
Note: for resolutions not listed here, the HDP
defaults to 1024 x 768
800 x 600 —
SVGA
848 x 480 — Plasma
852 x 480 — Plasma
1024 x 600 — WSVGA
1024 x 768 — XGA
1280 x 720 — HDTV (720p)
1280 x 768 — WXGA
1280 x 960 — 4:3 SXGA
1280 x 1024 — SXGA
1360 x 768 — Plasma
1366 x 768 — Plasma
1400 x 1050 — Projector
1600 x 1024 — WSXGA
1600 x 1200 — UXGA
1680 x 1050 — Apple 20” Cinema HD
1920 x 1080 — HDTV (1080p)
1920 x 1200 — WUXGA |
Maximum DVI
Resolution
Power
Size
|
5.8" x 2.4" x
1" (131 x 61 x 25mm) |
HDP Hardware
Scaling
What HDSDI
and SDI Does
The Serial Digital Interface (SDI),
standardized in ITU-R BT.656 and SMPTE 259M,
is a digital video interface used for
broadcast-grade video. A related standard,
known as High Definition Serial Digital
Interface (HD-SDI), is standardized in SMPTE
292M; this provides a nominal data rate of
1.485 Gbit/s. An emerging interface, commonly
known in the industry as dual link and
consisting essentially of a pair of SMPTE 292M
links, is standardized in SMPTE 372M; this
provides a nominal 2.970 Gbit/s interface used
in applications (such as digital cinema) that
require greater fidelity and resolution than
standard HDTV can provide. A more recent
interface, consisting of a single 2.97 Gbit/s
serial link, is standardized in SMPTE 424M.
These standards are used for transmission of
uncompressed, unencrypted digital video
signals (optionally including embedded audio)
within television facilities; they can also be
used for packetized data. They are designed
for operation over short distances; due to
their high bitrates they are inappropriate for
long-distance transmission. SDI and HD-SDI are
currently only available in professional video
equipment; various licensing agreements,
restricting the use of unencrypted digital
interfaces to professional equipment, prohibit
their use in consumer equipment.
|
|
|
|
|
